Thông tin chi tiết sản phẩm:
|
| Size: | 1175x575x240(2"x4") | Material: | Galvanized Frame |
|---|---|---|---|
| Noise: | 54dBA | Air velocity: | 0.35-0.65m/s |
| Filtration Grade: | Hepa Filter | Filter Efficiency: | H13 |
| Powder: | 220V | ||
| Điểm nổi bật: | ffu fan filter,hepa filter fan |
||

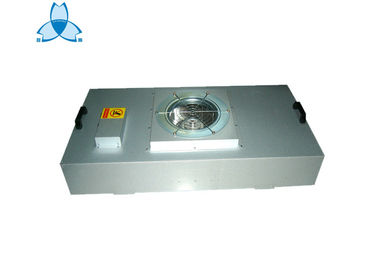

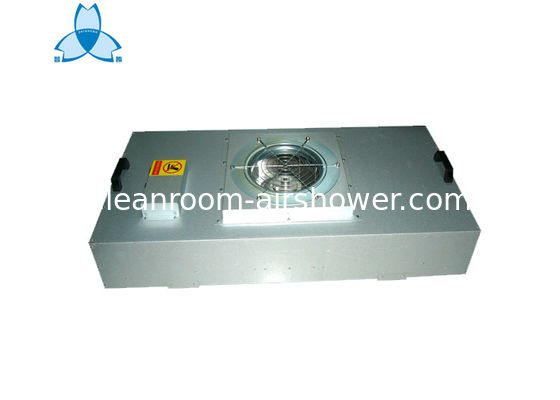

Low Noise 2*4 Galvanized Frame h14 FFU / Fan Filter Unit For Cleanroom
Salient Features:
long use life, low noise and vibration, maintenance-free, adjustable air speed, thousands unit can be easy controlled.
Factory Strict Test :
according to international ISO14644-1 standards, with a dust particle counter detection one by one to ensure the quality.
Application:
widely used in the semiconductor, electronics, flat panel displays, and optical disk drive manufacturers, bio- industries, assembled clean room and laminar flow hood.etc.
Fan filter Unit (FFU)
Standard Size and Specification
| Item Model | ZS-FFU610 | ZS-FFU915 | ZS-FFU1170 | ZS-FFU1220 | |
| Size for cabinet(mm) | 610x610x240 | 915x610x240 | 1170x570x240 | 1220x610x240 | |
| Material | Cold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304 | ||||
| Average Air flow(m3/h) | 600 | 900 | 1080 | 1200 | |
| Air velocity(Tested under filter300mm) | 0.35-0.6m/s | ||||
| ESP | 80-120pa | ||||
| HEPA filter | Size(mm) | 610x610x69 | 915x610x69 | 1170x570x69 | 1220x610x69 |
| Frame | Aluminum profile | ||||
| Media | Fiberglass | ||||
| Efficiency | H13 @0.3um | ||||
| Pressure Drop | ≤220pa | ||||
| Fan(motor) | Power | AC 220V/50Hz;AC110V/60Hz | |||
| Noise(dB) | 52 | 52 | 52 | 53 | |
| Optional | Control panel, Remote control, Pre filter, Pressure gauge | ||||
| Weight(KG) | 22 | 24 | 28 | 32 | |
Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air velocity speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
