Thông tin chi tiết sản phẩm:
|
| Construction: | bag filter | Material: | glass fiber |
|---|---|---|---|
| Class: | F6 | Size: | Customsize |
| Color: | orange color | Feature: | Air permeability |
| Điểm nổi bật: | bag filter systems,hvac hepa filter |
||

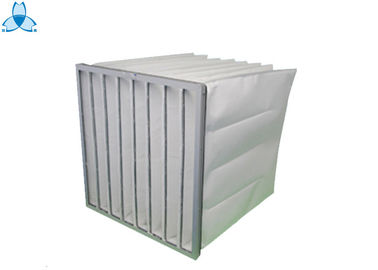

hvac Air Conditioning Ventilation Washable Anti-Static Air Pocket Air Filter
Bag Filters is a cost-effective and economical solution for high efficiency filtration. The Quality Bag Filters features a non-carcinogenic, microfiber polypropylene media that resists moisture, microbial growth and abrasion. Because it is synthetic, the filter media will not shed glass particles into the filtration system.
Quality Pocket Bag Filters are best suited for offices, paint booths, refineries, computer rooms, hospitals, schools and general industrial applications.
Quality Bag Filters feature:
Features:
| Product type | Synthetic fiber pocket filter for second stage gas turbine |
| Media | Synthetic fiber(3-layer) / Mircro glass fiber |
| Frame | Galvanized /Aluminum /ABS plastic |
| Class | F5-F9 (EN799) |
| Average Efficiency | 45%; 65%; 85%; 95%; |
| Media color | White, Orange(Green), Pink, Yellow |
| Initial pressure drop | 50-120 pa (0.2-0.48 WG) |
| Final pressure drop | 200-500 pa(0.8-2 WG) |
| Operating temperature | 80 ºC |
| Humidity resistance: | 100% |
Application:Pocket filter is widely used as a secondary filter for central air conditioning or air handling unit.
For use in areas that require a high degree of air cleanliness including hospitals, schools, industrial facilities and office complexes. Pocket filters excel in both dust holding capacity and filter efficiency. Greater dust holding capacity means longer service life and lower operating costs
Standard size and specification:
| Model | Outside dimensions(mm) (WxHxD) | Rated air flow(m3/h) | Initial resistance (Pa) | Efficiency (class) | Pockets | Material | |||
| Dust-spot | EN799 | Frame | Media | ||||||
| ZS-F5 | 495x295x500 (20”x12”x20”) | 1000 | 50Pa | 40-50% | F5 (White / Yellow) | 5 |
Aluminum /Galvanized Sheet/ plastic |
Non-woven fabric (synthetic fiber) | |
| 495x495x500 (20”x20”x20”) | 1800 | 5 | |||||||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
| ZS-F6 | 495x295x500 (20”x12”x20”) | 1000 | 55Pa | 60-70% | F6 (Orange /Green) | 5 | |||
| 495x495x500 (20”x20”x20”) | 1800 | 5 | |||||||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
| ZS-F7 | 495x295x500 (20”x12”x20”) | 1000 | 110Pa | 75-85% | F7(Pinky) | 5 | |||
| 495x495x500 (20”x20”x20”) | 1800 | 5 | |||||||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
| ZS-F8 | 495x495x500 (20”x20”x20”) | 1800 | 120Pa | 90-95% | F8(Yellow) | 5 | |||
| 595x295x500 (24”x12”x20”) | 1300 | 6 | |||||||
| 595x595x500 (24"x24"x20") | 2600 | 6 | |||||||
Picture:
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
