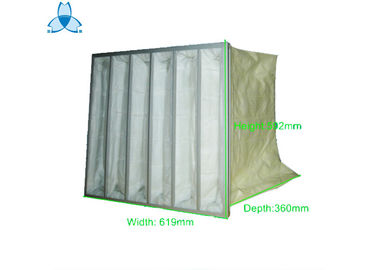

Synthetic Fiber Pocket Air Filter 619*360*592mm For Filtrate The Dust Partcles

Chứng nhận
TRUNG QUỐC DONGGUAN LIHONG CLEANROOM CO., LTD Chứng chỉ
TRUNG QUỐC DONGGUAN LIHONG CLEANROOM CO., LTD Chứng chỉ
Khách hàng đánh giá
ZHISHENG company provide high quality air shower room and good sevice. Miss Rita Guo will provide the drawing and details to us to confirm at order.

—— Subramaniam Muthusamy

Miss Rita Guo is a nice person, she is very patient to explain anything which we are confused, besides, she is professional on air shower.

—— ORAI CO.LTD

Tôi trò chuyện trực tuyến bây giờ

Synthetic Fiber Pocket Air Filter 619*360*592mm For Filtrate The Dust Partcles

Synthetic Fiber Pocket Air Filter 619*360*592mm For Filtrate The Dust Partcles
Synthetic Fiber Pocket Air Filter 619*360*592mm For Filtrate The Dust Partcles

Hình ảnh lớn :  Synthetic Fiber Pocket Air Filter 619*360*592mm For Filtrate The Dust Partcles

Thông tin chi tiết sản phẩm:
Place of Origin: Guangdong, China (Mainland)
Hàng hiệu: Zhisheng
Chứng nhận: ISO9001, Rohs
Model Number: ZS-F8
Thanh toán:
Minimum Order Quantity: 100 pcs
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 1000 pieces

Synthetic Fiber Pocket Air Filter 619*360*592mm For Filtrate The Dust Partcles

Sự miêu tả
Type: pocket filter Material: synthetic fiber Filter
Class: F8 Size: 619*360*592mm
Color: primrose yellow pocket filter Application: food industry
Điểm nổi bật:

bag filter systems

,

air bag filter



Pocket Air Filter Used To Filtrate The Dust Partcles For Food Industry





F5 F6 F7 F8 Measures air filter bag roll media is one of our main patented products. Produced with compunded meltblown material and ultrasonic welding technology, the bag filters have special three-layer structure and the advantages of high efficiency, low resistance and high dust holding capacity. Now bag filters are widely applied in HVAC installations and systems of air conditioning.


Features:

1. Ultrasonic sealed, durable and long service life
2. Low initial resistance and high air flow volume
3. Anti-static material and high dust holding capacity
4. Uniform color according to EN779, easy to distinguish
5. Stable performance, high melting point
6. Safe material, non-toxic and odorless
7 Various models for selection
8. Over 18 years of professional experience



Features:



Product type Synthetic fiber pocket filter for second stage gas turbine
Media Synthetic fiber(3-layer) / Mircro glass fiber
Frame Galvanized /Aluminum /ABS plastic
Class F5-F9 (EN799)
Average Efficiency 45%; 65%; 85%; 95%;
Media color White, Orange(Green), Pink, Yellow
Initial pressure drop 50-120 pa (0.2-0.48 WG)
Final pressure drop 200-500 pa(0.8-2 WG)
Operating temperature 80 ºC
Humidity resistance: 100%



Application:Pocket filter is widely used as a secondary filter for central air conditioning or air handling unit.

For use in areas that require a high degree of air cleanliness including hospitals, schools, industrial facilities and office complexes. Pocket filters excel in both dust holding capacity and filter efficiency. Greater dust holding capacity means longer service life and lower operating costs



Standard size and specification:



Model Outside dimensions(mm) (WxHxD) Rated air flow(m3/h) Initial resistance (Pa) Efficiency (class) Pockets Material
Dust-spot EN799 Frame Media
ZS-F5 495x295x500 (20”x12”x20”) 1000 50Pa 40-50% F5 (White / Yellow) 5

Aluminum /Galvanized Sheet/

plastic

Non-woven fabric (synthetic fiber)

495x495x500 (20”x20”x20”) 1800 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

ZS-F6 495x295x500 (20”x12”x20”) 1000 55Pa 60-70% F6 (Orange /Green) 5

495x495x500 (20”x20”x20”) 1800 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

ZS-F7 495x295x500 (20”x12”x20”) 1000 110Pa 75-85% F7(Pinky) 5

495x495x500 (20”x20”x20”) 1800 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

ZS-F8 495x495x500 (20”x20”x20”) 1800 120Pa 90-95% F8(Yellow) 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6







Picture:



Synthetic Fiber Pocket Air Filter 619*360*592mm For Filtrate The Dust Partcles 0



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
