Custom Size Industrial Air Filters Resistance 30 Pa , 2000 M3/H Rated Air Flow

Custom Size Industrial Air Filters Resistance 30 Pa  , 2000 M3/H Rated Air Flow
Custom Size Industrial Air Filters Resistance 30 Pa  , 2000 M3/H Rated Air Flow Custom Size Industrial Air Filters Resistance 30 Pa  , 2000 M3/H Rated Air Flow Custom Size Industrial Air Filters Resistance 30 Pa  , 2000 M3/H Rated Air Flow

Hình ảnh lớn :  Custom Size Industrial Air Filters Resistance 30 Pa , 2000 M3/H Rated Air Flow

Thông tin chi tiết sản phẩm:
Place of Origin: Guangdong, China (Mainland)
Hàng hiệu: Zhisheng
Chứng nhận: ISO9001, Rohs
Model Number: ZS-CB-2000
Thanh toán:
Minimum Order Quantity: 100 pieces
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 1000 pieces

Custom Size Industrial Air Filters Resistance 30 Pa , 2000 M3/H Rated Air Flow

Sự miêu tả
Frame: paper Media: non-wowen fabric
Size: 484*484*44mm Efficiency: G3
Rated air flow: 2000 m3/h Color: Blue
Điểm nổi bật:

air filter pre filter

,

pre filter air filter



Customer's Size Initial Resistance 30 Pa Pre Industrial Air Filter



Capacity:



Media: Polyester

Frame: Paper, aluminum or galvanized

Protect mesh: Aluminum net or stainless steel net

Face net:Spot mesh,Expanded mesh

Large filter area

Low initial resistance

Large dust holding capacity

Economical and practical

Efficiency:G3/G4 (EN779)

Recommended final Pressure drop:200Pa

Different sizes and specifications are available

Operating conditions:

Temperature:70

Humidity:90%RH

Applications:

Used as Prefilters in commercial and industial central air conditioning systems


Specification:



Product Details Type Panel filter, Pleated filter
Feature Large dust capacity,low drop
Frame Cardboard/aluiminum/galvanzied
Media Synthetic fiber
Size Standard or Customerized
Metal gauze Galvanzied/aluminum net
Efficiency 30-50% (merv 7-merv 9)
Class G3,G4 or F5


Size and specification:


Model Outside
dimensions(mm)
Initial
resistance(Pa)
Rated air
flow(m3/h)
Efficiency(%) Material
ZS-CB-3200 595x595x46 30 3200 30%(G3) Media :Synthetic fiber
ZS-CB-1600 595x295x46 1600 Frame :cardboard
ZS-CB-2000 484x484x44 2000 Metal gauze:Galvanized Steel/Aluminum alloy

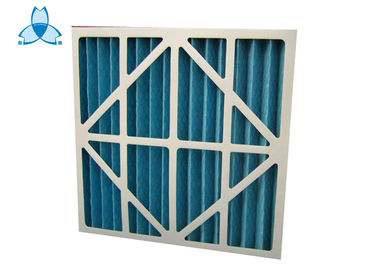

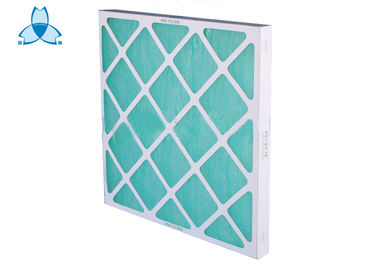

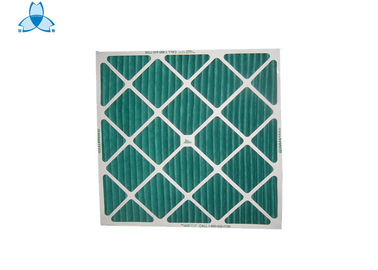

Picture:



Custom Size Industrial Air Filters Resistance 30 Pa  , 2000 M3/H Rated Air Flow 0







Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.



Delivery time:

Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.

After sales service:

We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
