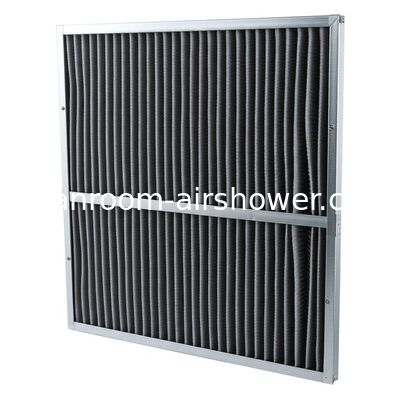

1220 610 150mm Or Custom Particulate Air Filter Suitable AHU Equipment Providing Dust Removal and Consistent Indoor Air

MOQ:	10 PCS
Thời gian giao hàng:	10days after approve the order
Điều khoản thanh toán:	50% prepayment in advance, 50% before shipment

Thông tin chi tiết

Mô tả sản phẩm

Thông tin chi tiết

Place of Origin:

CHINA

Chứng nhận:

ISO 9001

Lifespan:

12 Months

Filter Efficiency:

99.97%

Customized Size:

Available

Hepa:

H12

Separators:

Corrugated Aluminum Or Kraft Paper

Primary Resistance:

120±10 Pa

Sealant:

PU Polyurethane

Initial Pressure Drop:

≤220 /≤140 (HV)

Packaging Details:

Carton and pallet

Supply Ability:

1000 pcs

Làm nổi bật:

HEPA air filter for AHU equipment

150mm particulate air filter

custom dust removal air filter

Mô tả sản phẩm

1220×610×150mm or Custom Particulate Air Filter for AHU Equipment

Product Overview

The HEPA Air Filter is a premium quality High Efficiency Particulate Air Filter designed for exceptional air purification performance in industrial and commercial applications. Engineered to meet stringent air filtration standards, this filter is ideal for Air Handling Units (AHU), air handling systems, and HEPA filter boxes, ensuring clean, fresh air free from particulate contaminants.

Key performance features include remarkably low initial pressure drop (≤220 Pa standard, ≤140 Pa HV models), reducing energy consumption and maintenance costs. The filter maintains stable primary resistance of 120±10 Pa during operation, ensuring consistent airflow and filtration efficiency.

With H12 grade HEPA media, this filter captures at least 99.5% of airborne particles down to 0.3 microns, including dust, pollen, mold spores, bacteria, and allergens. Its robust construction ensures durability and long service life in demanding operating conditions.

Key Features

Product Name: HEPA Air Filter
Use: Suitable for AHU, Air Handling Unit, and HEPA Filter Box applications
Type: HEPA Filter
Work Temperature: Up to 80℃
Seal: AB Glue for secure and airtight sealing
Customized Size: Available to meet specific requirements
High Efficiency Particulate Air Filter ensuring superior air purification
Designed for optimal performance in various environments
Provides reliable filtration for clean and healthy air

Technical Parameters

Parameter	Specification
Lifespan	12 Months
Size	1220×610×150mm or Custom
Initial Pressure Drop	≤220 Pa / ≤140 Pa (HV)
Initial Pressure	<120 Pa
HEPA Grade	H12
Seal	AB Glue
Use	AHU, Air Handling Unit, HEPA Filter Box
Customized Size	Available
Weight	12kg
Sealant	PU Polyurethane

Applications

This High Efficiency Particulate Air Filter is ideal for environments requiring superior air purification. With 99.97% filter efficiency, it effectively removes airborne particles, allergens, and contaminants.

Perfect for hospitals, laboratories, pharmaceutical manufacturing, and cleanrooms where maintaining sterile conditions is critical. Also widely used in commercial buildings, office spaces, and residential environments to improve indoor air quality.

Industrial applications include electronics manufacturing, food processing, and automotive production where air cleanliness impacts product quality and safety.

Order Information: Minimum order quantity: 10 pieces. Supply ability: 1000 pieces. Delivery within 10 days after order approval. Payment terms: 50% prepayment in advance and 50% before shipment.

Customization Options

Our High Efficiency Particulate Air Filter products are ISO 9001 certified and offer comprehensive customization services. Standard dimensions of 1220×610×150mm can be tailored to your specific requirements.

Filters feature separators made of corrugated aluminum or kraft paper, sealed with durable PU polyurethane. Each filter is designed with primary resistance of 120±10 Pa for optimal efficiency and airflow balance.

Packaging includes protective carton and pallet to ensure safe transit. Minimum order quantity: 10 pieces with supply ability of 1000 pieces and 10-day delivery after order approval.

Technical Support & Services

Our comprehensive support includes installation guidance, troubleshooting, maintenance tips, and replacement part information. Refer to the included user manual for proper installation to ensure maximum efficiency.

Regular maintenance, including timely filter replacement and pre-filter cleaning, helps maintain air quality and extend filter lifespan. Our technical support experts provide step-by-step solutions for any issues encountered.

We offer warranty services, repairs, replacements, and online resources including FAQs, instructional videos, and downloadable manuals to support your air quality needs.

Packaging & Shipping

Packaging: Each HEPA Air Filter is securely packaged in sturdy, eco-friendly boxes with protective plastic sleeves to prevent dust and moisture exposure. Includes installation instructions, specifications, and warranty information.

Shipping: Orders processed within 1-2 business days and shipped via trusted carriers with tracking available. Carefully packed to avoid damage during transit. Multiple shipping options available, including international shipping with estimated delivery times provided at checkout.
