Thông tin chi tiết sản phẩm:
|
| Size: | 610*610*240 | Material: | powder coated steel |
|---|---|---|---|
| Powder: | 160w | Air velocity: | 0.45m / s ± 20% |
| Voltage: | 220V | Noise: | ≤54db |
| Điểm nổi bật: | ffu fan filter,hepa filter fan |
||

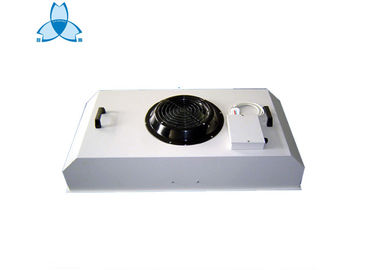

Air velocity 0.45m / s ± 20% Fan Filter Unit with HEPA Filter
Product informaton
Fan filter unit, also called for FFU. It's widely used in the cleanroom, to filter the dust and offer the clean air. With the HEPA filter together.
Features
1.low consumption
2.low operation cost
3.low noise
4.wind speed uniformity
5.in the largest air volume can reach the highest total net pressure value
6.easy to install on the skeleton of the ceiling in the clean room
Aplication
The fan filter unit it's widely used in the cleanroom, like: emiconductor, electronics, flat-panel displays, disc-drive, manufacturers and optics, bio-engineering, clean lines, clean bench, clean room ,laminar flow hood ,etc.
Standard Size and Specification
| Item Model | ZS-FFU610 | ZS-FFU915 | ZS-FFU1170 | ZS-FFU1220 | |
| Size for cabinet(mm) | 610x610x240 | 915x610x240 | 1170x570x240 | 1220x610x240 | |
| Material | Cold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304 | ||||
| Average Air flow(m3/h) | 600 | 900 | 1080 | 1200 | |
| Air velocity(Tested under filter300mm) | 0.35-0.6m/s | ||||
| ESP | 80-120pa | ||||
| HEPA filter | Size(mm) | 610x610x69 | 915x610x69 | 1170x570x69 | 1220x610x69 |
| Frame | Aluminum profile | ||||
| Media | Fiberglass | ||||
| Efficiency | H13 @0.3um | ||||
| Pressure Drop | ≤220pa | ||||
| Fan(motor) | Power | AC 220V/50Hz;AC110V/60Hz | |||
| Noise(dB) | 52 | 52 | 52 | 53 | |
| Optional | Control panel, Remote control, Pre filter, Pressure gauge | ||||
| Weight(KG) | 22 | 24 | 28 | 32 | |
Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air velocity speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
