Aluminum Alloy / Stainless Steel Clean Room Equipment PVC Softwall Clean Booth

Aluminum Alloy / Stainless Steel Clean Room Equipment PVC Softwall Clean Booth

MOQ: 1 set
standard packaging: Plywood case
Delivery period: 15-20 days
payment method: Western Union, T/T
Supply Capacity: 100 sets per Month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Hàng hiệu
Zhisheng
Chứng nhận
ISO 9001/CE/ROHS
Model Number
ZS-CB
Series:
Clean Room Equipment
Frame of clean booth:
Aluminum alloy or stainless steel
Body of clean booth:
PVC anti-static curtains / Plexiglass / Acrylic sheet
Application:
for the pharmaceutical, microbiological research
Minimum Order Quantity:
1 set
Packaging Details:
Plywood case
Delivery Time:
15-20 days
Payment Terms:
Western Union, T/T
Supply Ability:
100 sets per Month
High Light:

clean room products

,

clean room supplies

Product Description

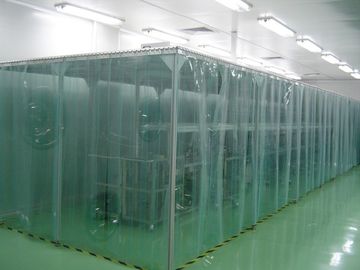

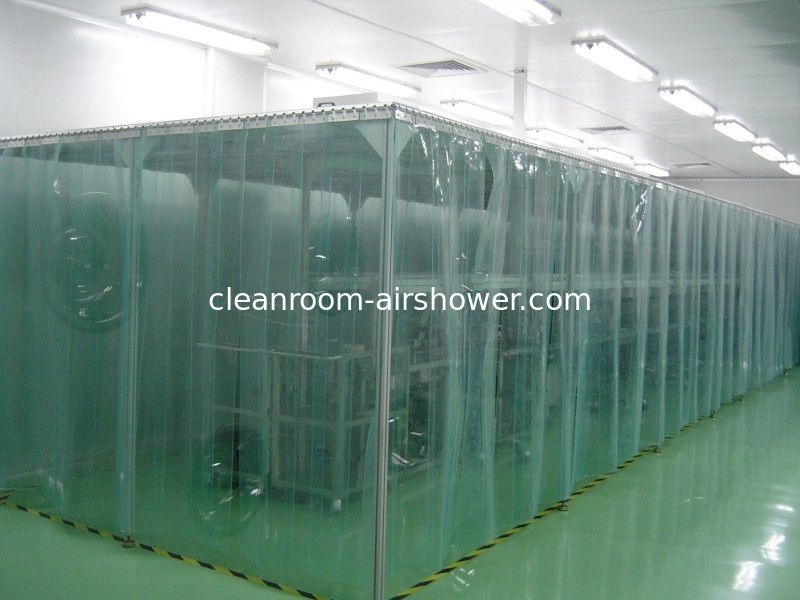

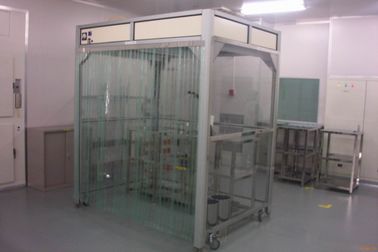

Anti-static PVC Softwall Clean Booth For Clean Room



Application:



Clean booth is for the pharmaceutical, microbiological research and scientific experiments, which require partial purification equipment.



Material:



Frame of clean booth: Aluminum alloy or stainless steel

Body of clean booth: PVC anti-static curtains / Plexiglass / Acrylic sheet

Shell of FFU material: Cold rolled steel with powder coated, Aluminum coated zinc platet,or stainless steel 201/304



Features:



1).Clean booth can offer the part of high clean environment ,can be installed on the top of the place

that need to clean.The air that come out from the FFU will be filtered by the pre filter and HEPA filter ,then the



clean air enter into the work zone vertically to insure the purification requirement



2).the noise less than 52dBA,the air velocity is 0.35-0.6m/s



3). the dimension of the clean booth ,customizes design is available



4).it can be used by single and also can be connected to clean area in strip



5). purification rank : 100 class,1000 class or 10000class



Optional Accessory:



Pressure gauge



Specification for FFU



Item Model ZS-FFU610 ZS-FFU915 ZS-FFU1170 ZS-FFU1220
Size for Casing(mm) 610x610x240 915x610x240 1170x570x240 1220x610x240
Material Cold rolled steel with powder coated, Aluminum coated zinc plate,or stainless steel 201/304
Rated Air flow(m3/h) 1000 1500 1800 2000
Air velocity 0.35/0.48/0.6 m/s
ESP 80-120pa
Hepa fiter Size (mm) 610x610x69 915x610x69 1170x570x69 1220x610x69
Frame Aluminum profile
Media Fiberglass
Efficiency H13
Pressure Drop ≤220pa
Fan (motor) Voltage AC 220-240V/50Hz
Current 0.76A
Power 80-120W
Noise(dB) 48 50 52 53
Weigth(KG) 22 24 28 32
